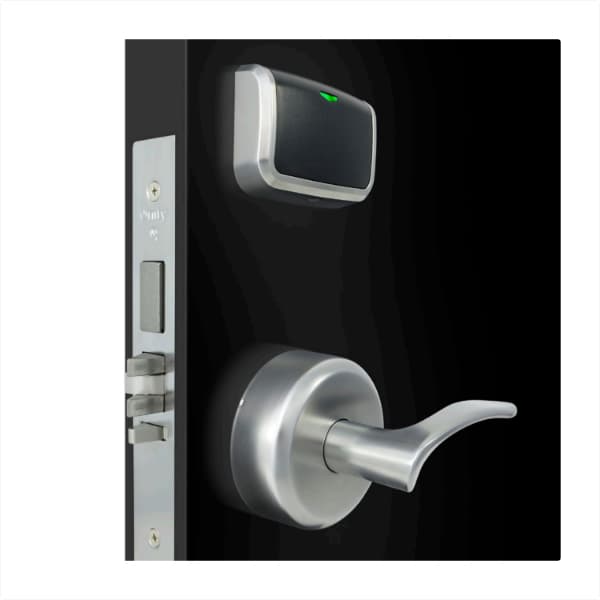

ADVANCE Trillium® RFID Lock

Two-piece modular design. Using touch card technology, MIFARE card.

Product Description

Onity’s ADVANCE Trillium lock features a stylish new look in a two-piece modular design, with a low-profile reader designed for today’s modern aesthetics.



Advanced Credential Security : Trillium RFID locks include the option to use MIFARE Plus technology, an enhanced credential security for RFID cards.



Easy Upgrade Path: The ADVANCE Trillium lock provides an easy upgrade path where Onity ADVANCE series locks currently are installed – no new door cuts or repainting are required when installing new locks. Properties with Onity ADVANCE locks can update to ADVANCE Trillium locks by installing a new reader, control board, and optional rosette cover. For upgrades from Onity HT locks to ADVANCE Trillium locks, Onity offers standard or custom cover plates.



Features

  • Compatible with Onity HT22 and HT24 electronic locking systems
  • Supports MIFARE Classic®, MIFARE Plus®, MIFARE Ultralight®, and MIFARE Ultralight C cards
  • Reading technology: contactless RFID (ISO14443A, NFC)
  • DirectKey-ready: Optional on-board DirectKey module provides secure wireless communication of credentials from a user’s smartphone to a locking device via Bluetooth® Smart communications.
  • Multiple opening devices available: keycards, wristbands, keychains, etc.
  • Average battery life: approximately 2 years
  • Non-volatile memory: records last 500 openingsincluding date, time and card used
  • Programmable to customer needs (meeting rooms, offices, housekeeping, etc.)
  • LEDs indicate lock status including a low battery
  • Corrosion-treated for normal atmospheric conditions
  • NXP CRYPTO1 or AES-128 card encryption
  • Available in multiple standard hardware finishes.

Product Specification

  • Temperature Tolerance Ranges:
    Alkaline batteries: 0º F / 130º F (-18º C / 55º C)
    For non-fire rated doors only, lithium batteries:
    -40º F / 167º F (-40º C / 75º C)
  • Humidity: up to 95% non-condensing
  • Power supply: 4 alkaline 1.5-volt AA batteries
  • Not for outside use
