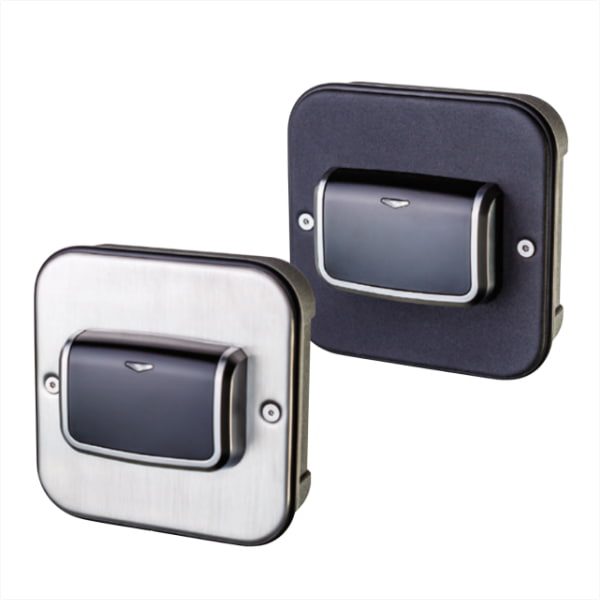

Trillium® RFID Wall Reader

Online or offline wall reader control unit

Product Description

Secure your property with with Trillium® wall-mounted card readers at perimeter doors, elevators, parking areas, pool, and health facilities.



The on-line card readers allow reception personnel to check openings as well as authorize or deny card access in real time. Non-volatile memory supports an audit trail of the last 8,000 openings, and an antipass back function is also incorporated.



The off-line card readers allow only authorized card holders to gain access, and the audit trail retains the last 500 openings.



Card readers are programmable, just like any Onity lock and are appropriate for either interior or exterior use.



Features

  • Compatible with Onity RFID electronic locking systems
  • Supports MIFARE Classic®, MIFARE Plus®, MIFARE Ultralight®, and MIFARE Ultralight C cards
  • Reading technology: contactless RFID (ISO14443A, NFC)
  • DirectKey-ready: Optional on-board DirectKey module provides secure wireless communication of credentials from a user’s smartphone to a locking device via Bluetooth® Smart communications
  • ADA compliant. ADA opening timer
  • Multiple opening devices available: keycards, wristbands, keychains, etc.
  • NXP CRYPTO1 or AES-128 card encryption
  • LED indicates access granted or access denied status
  • Available with stainless steel or black faceplates

Requirement: Online or offline wall reader control unit



Benefits

  • Allows both online and offline configurations
  • Flexible installation: surface mount or flush mount
  • Fits in U.S. double-gang or European 100 x 100 box
  • Tamper switch generates audit log if the wall reader is removed from the wall

Product Specification

  • Operating Temperature Range: -40º F to 167º F (-40º C to 75º C)
  • Dimensions: Length: 5.25” (133mm)
  • Width: 5.25” (133mm)
  • Depth (reader and box): 2.125” (54 mm)
